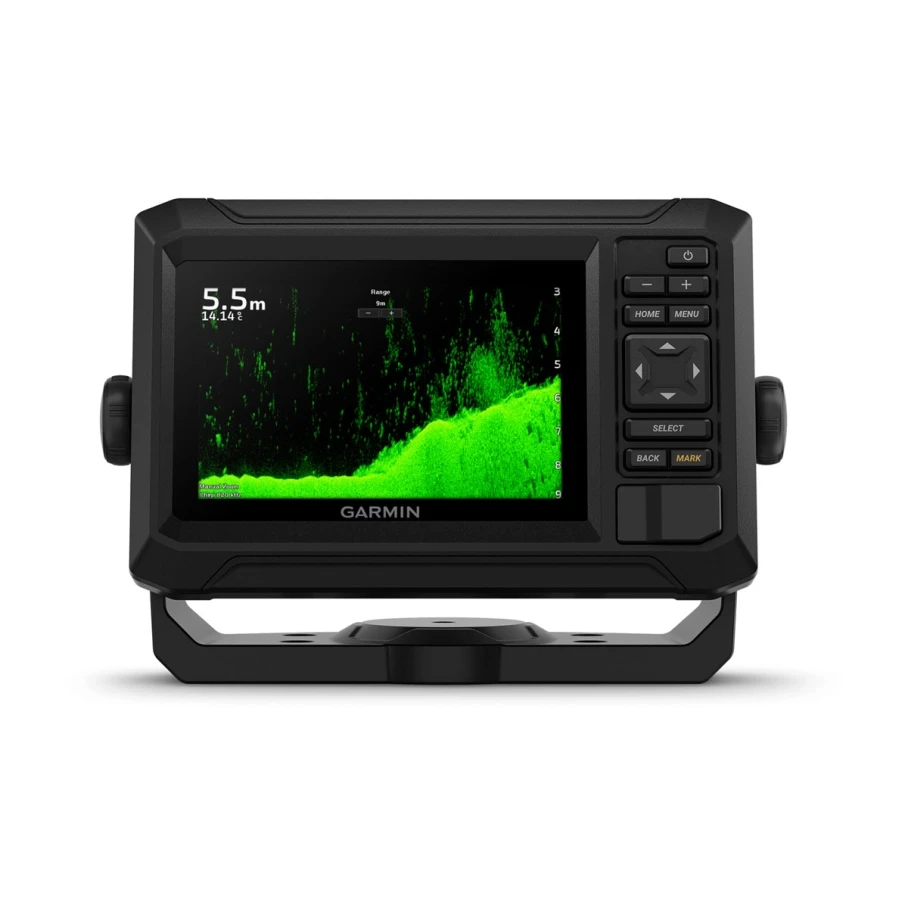

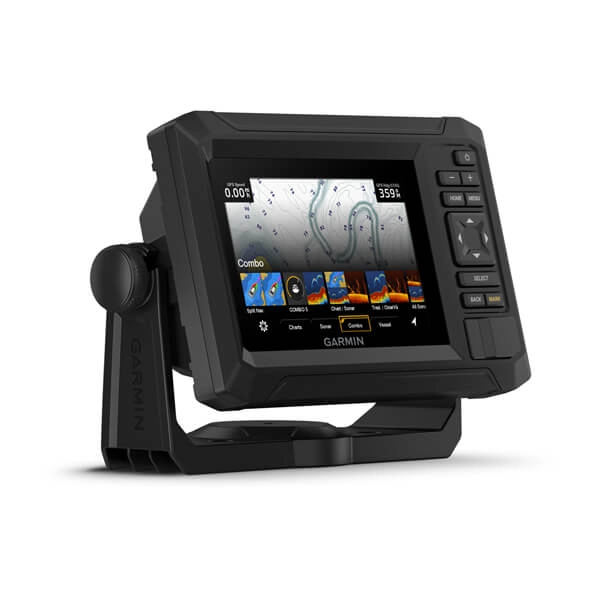

ECHOMAP™ UHD2 5″ Chartplotters 52cv with GT20-TM Transducer
AED 1.975,00
In Stock
Did you like this product? Add to favorites now and follow the product.
This product has been added to 12 people'scarts.
Description
General |
|
| DIMENSION | 7.4″ x 4.8″ x 2.4″ (18.8 x 12.2 x 6.2 cm) |
|---|---|
| INPUT | |
| DISPLAY SIZE | 4.3″ x 2.6″ (10.9 x 6.6 cm) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| DISPLAY TYPE | WVGA, IPS |
| WEIGHT | 1.1 lbs (0.5 kg) |
| WATERPROOF | IPX7 |
| MOUNTING OPTIONS | Bail or flush |
Maps & memory |
|
| ACCEPTS DATA CARDS | 1 microSD™ card; 32 GB maximum size |
|---|---|
| WAYPOINTS | 5,000 |
| TRACK POINTS | 50,000 |
| TRACKS | 50 saved tracks |
| NAVIGATION ROUTES | 100 |
Sensors |
|
| HAS BUILT-IN RECEIVER | |
|---|---|
| RECEIVER | 5 Hz |
| GPS | |
| SUPPORTS WAAS | |
Built-in maps |
|
| BLUECHART(COASTAL) | yes (see Additional) |
|---|---|
| LAKEVU (INLAND) | yes (see Additional) |
| TOPO | yes (see Additional) |
Optional map support |
|
| LAKEVÜ G3 | |
|---|---|
| LAKEVÜ G3 ULTRA | |
| GARMIN NAVIONICS+™ | |
| GARMIN NAVIONICS VISION+™ | |
| TOPO | |
| STANDARD MAPPING | |
| GARMIN QUICKDRAW CONTOURS | |
Chartplotter Features |
|
| ACTIVECAPTAIN® COMPATIBLE | |
|---|---|
Sonar features & specifications |
|
| DISPLAYS SONAR | |
|---|---|
| POWER OUTPUT | 500 W |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVÜ | built-in 260/455/800/1000/1200 kHz |
Connections |
|
| 4-PIN TRANSDUCER PORTS | 1 |
|---|---|
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | |
Electrical Features |
|
| POWER INPUT | 9 to 18 Vdc |
|---|---|
| TYPICAL CURRENT DRAW AT 12 VDC | 1.0 A |
| MAXIMUM CURRENT DRAW AT 12 VDC | 1.5 A |
| MAXIMUM POWER USAGE AT 10 VDC | 18W |
Additional |
|
| ADDITIONAL | BlueChart (coastal): 54cv U.S. BlueChart g3, 55cv U.K./Ireland BlueChart g3, 55cv Australia/New Zealand BlueChart g3, 74cv U.S. BlueChart g3, 75cv UK/Ireland BlueChart g3, 75cv Australia/New Zealand BlueChart g3 LakeVü: 55cv U.S. LakeVü g3, 55cv Canada LakeVü g3, 73cv U.S. LakeVü g3, 73cv Canada LakeVü g3 Tide tables: 53cv, 54cv, 55cv, 73cv, 74cv, 75cv |
|---|---|
Additional information
| brands | Garmin |
|---|
