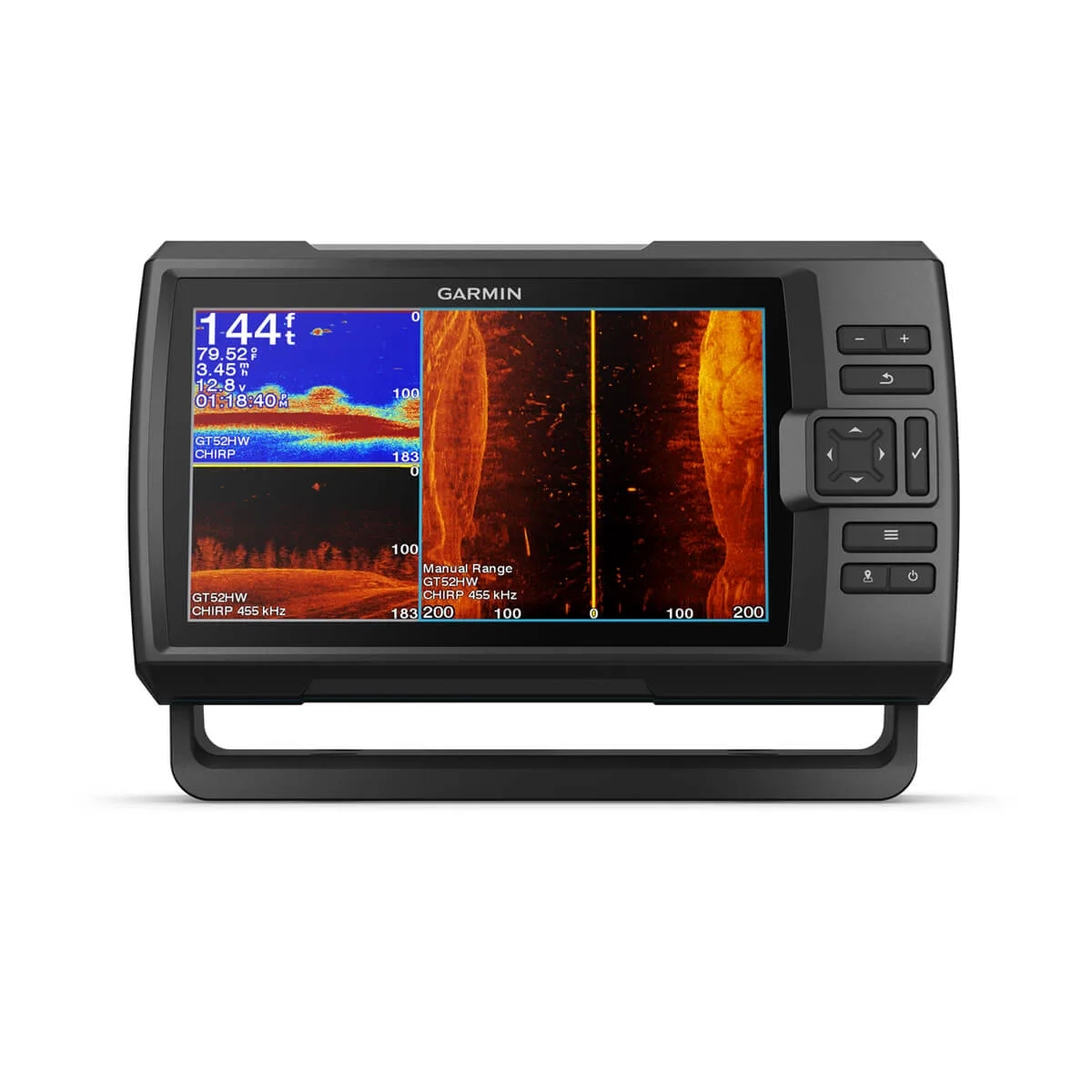

STRIKER Vivid 9sv With GT52HW-TM Transducer
AED 2.669,00
In Stock
Did you like this product? Add to favorites now and follow the product.
This product has been added to 3 people'scarts.
Description
General |
|
| DIMENSION | 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm) |
|---|---|
| WEIGHT | 2.4 lbs (1.1 kg) |
| WATER RATING | IPX7 |
| DISPLAY TYPE | WVGA colour |
| DISPLAYS SONAR | 4.4″ x 7.8″ (11.2 x 19.8 cm); 9.0″ diag (22.8 cm) |
| DISPLAY RESOLUTION | 800 x 480 pixels |
| MOUNTING OPTIONS | flush, tilt/swivel |
| Sensitivity (1 watt @ 1 metre) | Keyed |
Maps & memory |
|
| WAYPOINTS/FAVOURITES/LOCATIONS | 5000 |
|---|---|
| TRACK POINTS | 50,000 |
| TRACKS | 50 |
| ROUTES | 100 |
Sources |
|
| GPS | |
|---|---|
| HAS BUILT-IN RECEIVER | |
| SUPPORTS WAAS | |
Optional map support |
|
| GARMIN QUICKDRAW CONTOURS | |
|---|---|
Electrical Features |
|
| POWER INPUT | 12 to 20 Vdc |
|---|---|
| Typical current draw | 0.75 A |
| Max current draw | 1.5 A |
| Power consumption | 9.0 |
Sonar features & specifications |
|
| SONAR HISTORY REWIND | |
|---|---|
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) | Built-in |
| CLEARVÜ | |
| FREQUENCY RESPONCE | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz |
| Transmit power | 500 W (RMS) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | |
| WATER TEMPERATURE LOG AND GRAPH | |
Connections |
|
| 4-PIN TRANSDUCER PORTS | 2 |
|---|---|
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) | |
Fishfinder Features |
|
| Split-screen zoom | |
|---|---|
| Fish Symbol ID (helps identify fish targets) | |
| AutoGain Technology (minimises clutter, maximises targets) | |
| Adjustable depth line (measures depth of underwater objects) | |
| A-scope (real time display of fish passing through transducer beam) | |
| Water temperature sensor included | |
| Depth range shading | |
Security Information |
|
| SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD) | 2022-10-27 |
|---|---|
Additional |
|
| ADDITIONAL | One 4-pin transducer port One 4-pin SideVü transducer port Wireless Connectivity: Yes Quickdraw Contours Integrated GPS Mark Waypoints Course over Ground (COG) Current draw @ 12V: 0.75A |
|---|---|
Additional information
| brands | Garmin |
|---|
